REDUCED FLOW - Series RPV-R
2- and 3-Way, Normally Closed, with threaded ports, PN32, DN 8 - 40
|
FEATURES Valves with reduced flow rate. More compact and cheaper than the standard valves series RPV. Ruggedly built valve, particularly recommended for use with steam, oil, superheated water, corrosive fluids and non-flammable gas Seat rings, packing and piston seals can be easily exchanged. Replacing a piston seal is considerably easier and quicker then exchanging a diaphragm on conventional diaphragm valves Enclosed pistons, seals and springs are protected from dirt High-performance, self-adjusting, spring-loaded, maintenance-free packing, resistant to thermal shock Vacuum operation Stainless steel body Allowable backpressure: up to 32 bar Applicable at low and high ambient temperatures in the range from -45 to +230 °C. The valves can be mounted in any position without affecting operation |
|
PRODUCT ADVANTAGES:
|
- Very Compact Design - Self-Regulating Packing - Non-Corrosive Materials |
- High sealing effect - Long Life - Universally for all Mediums |
- Easy Maintenance - High Performance - Robust Design |
GENERAL INFORMATION
|
Maximum operating pressure: |
32 bar |
|
Temperature range: |
– 45 °C to + max. 230 °C |
|
Pilot pressure: |
2.5 – 3.5 bar |
|
Operating fluids: |
Steam / Saturated Steam, superheated water, vacuum, liquid or gaseous aggressive and non-aggressive media, including oil and gas containing hydrogen sulfide (H2S) |
FLOW RATES – RPV-R Series:
|
Model Number |
Pipe Size |
DN |
Flow coefficient Kv |
|||||||
|
mixer |
distributor |
|||||||||
|
3 => 2 |
1 => 2 |
2 => 3 |
2 => 1 |
|||||||
|
m3/h |
l/min |
m3/h |
l/min |
m3/h |
l/min |
m3/h |
l/min |
|||
|
NC – Normally Closed |
||||||||||
|
RPV-R-311-15B |
1/2" |
15 |
1.93 |
32.17 |
2.75 |
45.84 |
2.1 |
35 |
2.56 |
42.68 |
|
RPV-R-311-20B |
3/4" |
20 |
3.2 |
53.34 |
4.4 |
73.35 |
3.7 |
61.68 |
4.9 |
81.68 |
|
RPV-R-311-25B |
1" |
25 |
8.34 |
139.03 |
7.22 |
120.36 |
7.65 |
127.53 |
7.45 |
124.2 |
|
RPV-R-311-32B |
1 1/4" |
32 |
15.67 |
261.22 |
10.84 |
180.7 |
13.5 |
225.05 |
13.49 |
224.88 |
|

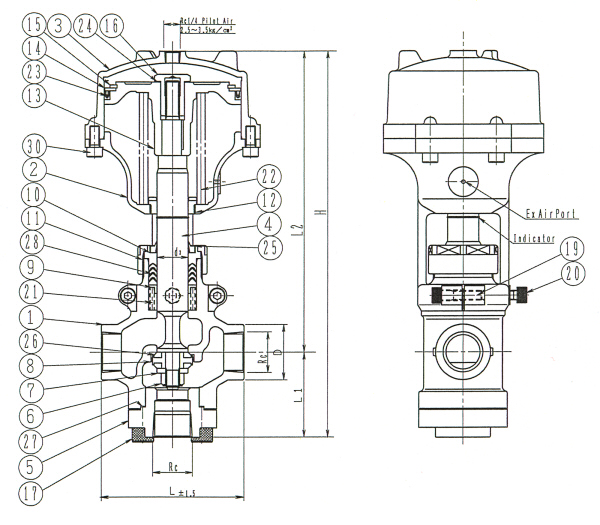

No. |
Part Name |
Materials |
No. |
Part Name |
Materials |
|
1 |
Body |
SCS13 = 1.4308 |
16 |
Tension Nut |
S25C = 1.1158 |
|
2 |
Yoke Stand |
FCD450 = GGG-40.3 |
17 |
Cap Screw |
SUS304 = 1.4301 |
|
3 |
Cylinder |
FCD450 = GGG-40.3 |
18 |
|
|
|
4 |
Stem |
SUS403 = 1.4000 |
19 |
Cap Screw |
SUS304 = 1.4301 |
|
5 |
Lower Seat Flange |
S25C = 1.1158 |
20 |
Cap Screw |
SUS304 = 1.4301 |
|
6 |
U-Nut |
SUS304 = 1.4301 |
21 |
Packing Spring |
SUS304-WPB |
|
7 |
Guide Washer |
SUS304 = 1.4301 |
22 |
Spring |
SUP6 |
|
8 |
Disc Adapter |
SUS304 = 1.4301 |
23 |
Piston Ring |
Teflon (PTFE) |
|
9 |
Ring Washer |
C3602 – Brass |
24 |
Gasket |
562-1 |
|
10 |
Gland |
C3602 – Brass |
25 |
Dust Seal |
SUS304 + 763-1 |
|
11 |
Gland Nut |
S25C = 1.1158 |
26 |
Disc Ring |
Teflon (PTFE) |
|
12 |
Guide Bushing |
C3602 – Brass |
27 |
Lower Seat Gasket |
562-1 |
|
13 |
Piston |
FCD450 = GGG-40.3 |
28 |
Packing |
763-1 |
|
14 |
Set Ring Plate |
SS400 |
29 |
Bolt |
SUS304 = 1.4301 |
|
15 |
Retaining Ring |
S60CM |
30 |
Cap Screw |
SUS304 = 1.4301 |
Model Selection / Dimensions:
|
Model Number |
Rc / BS-PT |
D |
L |
L1 |
L2 |
H |
A |
d2 |
Weight, kg |
|
|
2-Way |
3-Way |
|||||||||
|
RPV-R-211-08B |
RPV-R-311-08B |
1/4" |
30 |
85 |
50 |
153.5 |
203.5 |
98 |
12.7 |
2.8 |
|
RPV-R-211-10B |
RPV-R-311-10B |
3/8" |
30 |
85 |
50 |
153.5 |
203.5 |
98 |
12.7 |
2.8 |
|
RPV-R-211-15B |
RPV-R-311-15B |
1/2" |
32 |
85 |
50 |
153.5 |
203.5 |
98 |
12.7 |
2.8 |
|
RPV-R-211-20B |
RPV-R-311-20B |
3/4" |
40 |
110 |
66 |
189.5 |
255.5 |
109 |
15 |
3.9 |
|
RPV-R-211-25B |
RPV-R-311-25B |
1" |
46 |
120 |
71 |
230 |
301 |
136 |
19 |
6 |
|
RPV-R-211-32B |
RPV-R-311-32B |
1 1/4" |
56 |
145 |
92 |
248.5 |
340.5 |
156 |
26 |
9 |
|
RPV-R-211-40B |
RPV-R-311-40B |
1 1/2" |
62 |
150 |
92 |
301 |
393 |
202 |
34 |
16 |
